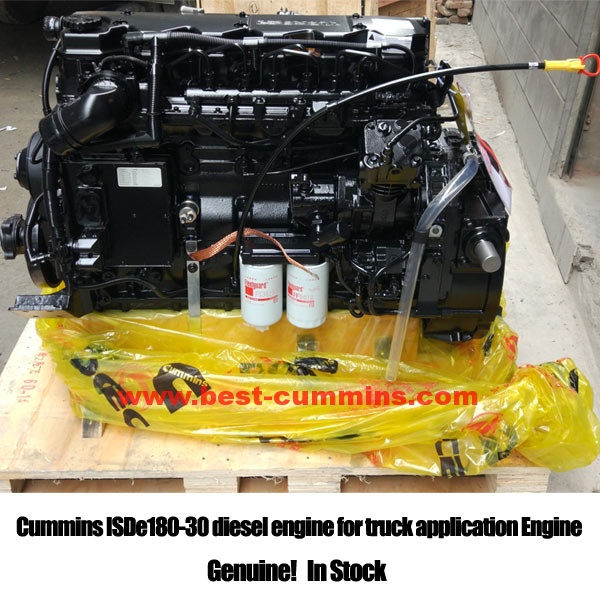

Cummins ISDe180-30 Diesel Engine for Truck

The above is general technicial information of Cummins ISDe180-30 diesel engine for truck application Engine. It is also for us to supply the Cummins ISDe180-30 genuine engine parts. best-cummins.com also supply Cummins ISDe, ISBe,ISLe engine and parts.

Description

Cummins ISDe180-30 Diesel Engine for Truck

General data of Cummins ISDe180-30 Diesel Engine for Truck
Engine ModelCummins ISDe180-30
Engine Type4 stroke, 4 cylinder in line
Displacement4.5 L
Bore&Stroke107*124 mm
Net Weight(with flywheel and alternator)336 KG
Size810*720*820(mm)
Technical data of Cummins ISDe180-30 Diesel Engine for Truck
Emission StandardEURO III
Fuel SystemBOSCH common rail (HPCR)
AspirationTurbocharged and Air-Air Intercooled
Compression Ratio17.3:1
Idle Speed600-800 RPM
Maximum No-load Speed2850 RPM
Maximum Super Speed4200 RPM
Maximum Engine Operation altitude4700 m
Performance Date of Cummins ISDe180-30 Diesel Engine for Truck
Rated Output136KW/180HP @ 2500 RPM
Max Torque/Speed650N.m @ 1200-1700 RPM
Torque/Rated speed395N.m @ 2500 RPM
Minimum Fuel Consumption<185 g/KW.h



The above is general technicial information of Cummins ISDe180-30 diesel engine for truck application Engine. It is also for us to supply the Cummins ISDe180-30 genuine engine parts.
