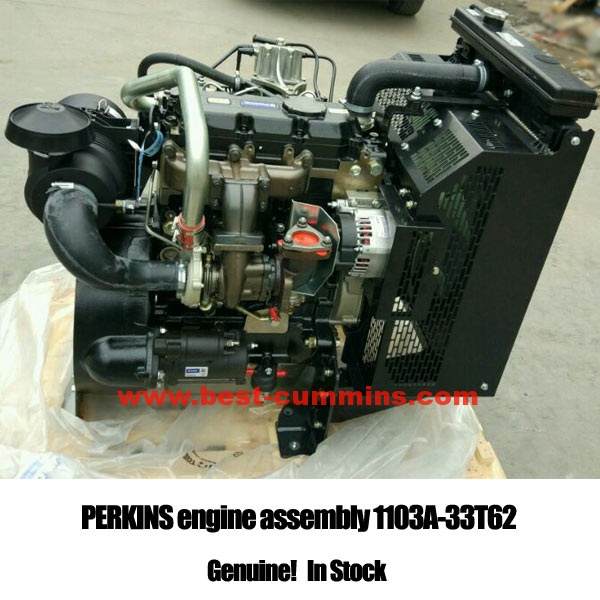

PERKINS engine assembly 1103A-33T62

Electric power engines in the series achieve regulated and unregulated emission standards globally. Within the 1100 Series of industrial engines are mechanical and electronic units up to Stage IIIA/Tier 3 equivalent emissions standards.

Description

PERKINS engine assembly 1103A-33T62

General Data
BrandPERKINS
No. Cylinders3
Cubic capacity3,3 l
Air intakeTurbocharged
CoolingWater
Flywheel net power53,8 kW
Fuel Cons. at 100% (L.T.P.)15,4 l/h
Fuel Cons. at 100% (P.R.P.)13,9 l/h
Fuel Cons. at 75% (P.R.P.)10,4 l/h
Fuel Cons. at 50% (P.R.P.)7,2 l/h
Fuel Cons. at 25% (P.R.P.)4,1 l/h
Cont. power (P.R.P.)60 kVA
Standby power (L.T.P.)66 kVA
BMEP
Speed (RPM)1500 rpm
Sae3-11½
TA LuftNot available
TA Luft/2Not available
EPANot available
StageNot available
Electronic RegOptional
Precision ClassG2
Weight375 kg
Oil q.ty8,3 l
Antifreeze q.ty5,8 l
Antifreeze Radiator q.ty4,4 l
Antifreeze Total10,2 l
Heat to radiator35 kW
Heat to exhaust41 kW
Heat to radiation10 kW
Exhaust temperature557 °C
Cooling air flow89 m³/min
Combustion air flow3,8 m³/min
Exhaust gas flow10,1 m³/min



From the 3 cylinder 1103 range to the 6 cylinder 1106 range, this is a series of engines that gives unparalleled performance. The engines have exceptional reliability and low cost of ownership. Their trusted performance is borne out of thousands of hours of validation in the real world, working with agricultural, construction and electric power providers who value our reputation and expertise. Electric power engines in the series achieve regulated and unregulated emission standards globally. Within the 1100 Series of industrial engines are mechanical and electronic units up to Stage IIIA/Tier 3 equivalent emissions standards.
