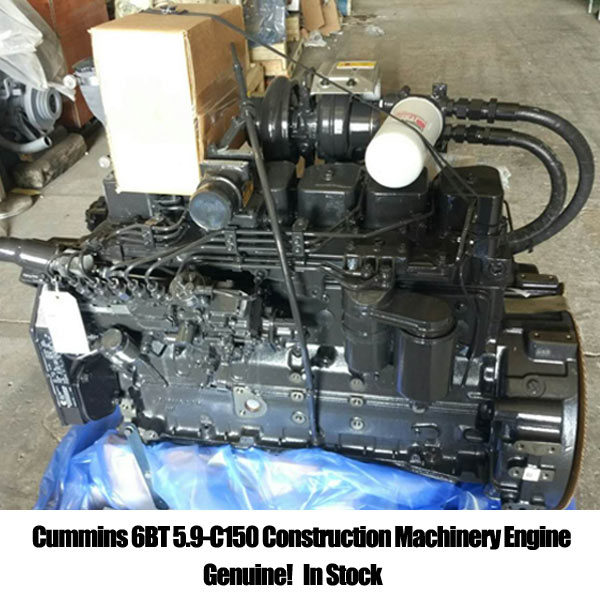

Cummins 6BT5.9-C150 Construction Machinery Engine

The above is general technicial information of Cummins 6BT5.9-C150(2500RPM) industrial application Engine. It is also for us to supply the Cummins 6BT5.9-C150(2500RPM) genuine parts and engine units with clutch ASSY.

Description

Cummins 6BT5.9-C150 Construction Machinery Engine

General data of Cummins 6BT5.9-C150 Construction Machinery Engine
Engine ModelCummins 6BT5.9-C150
Type6 cylinder in line
Displacement5.9 L
Bore&Stroke102×120 mm
Dry Weight432 KG
Dimension(L*W*H)1026*699*912 (mm)
Center of gravity from front face of block391 mm
Center of gravity above crankshaft centerline140 mm
Technical data of Cummins 6BT5.9-C150 Construction Machinery Engine
AspirationTurbocharged
Fuel SystemA Pump/RSV Governor Regulation 8%
Coolant capacity-engine only9.9 litre
Minimum Idle speed750 RPM
Maximum Speed(10% rated load)2700 RPM
Compression ratio16.8:1
Piston Speed
Firing Order1-5-3-6-2-4
Performance Date of Cummins 6BT5.9-C150 Construction Machinery Engine
Rated Output110KW/150HP
Rated Speed2500RPM
Max Torque/Speed565N.m/1500RPM
Torque/Rated Speed428N.m/2500RPM
Minimum Fuel Consumption/speed217g/KW.h/1700RPM
Maximum Fuel Consumption/speed242g/KW.h/800RPM
Fuel Consumption/rated speed238g/KW.h/2500RPM



The above is general technicial information of Cummins 6BT5.9-C150(2500RPM) industrial application Engine. It is also for us to supply the Cummins 6BT5.9-C150(2500RPM) genuine parts and engine units with clutch ASSY.
