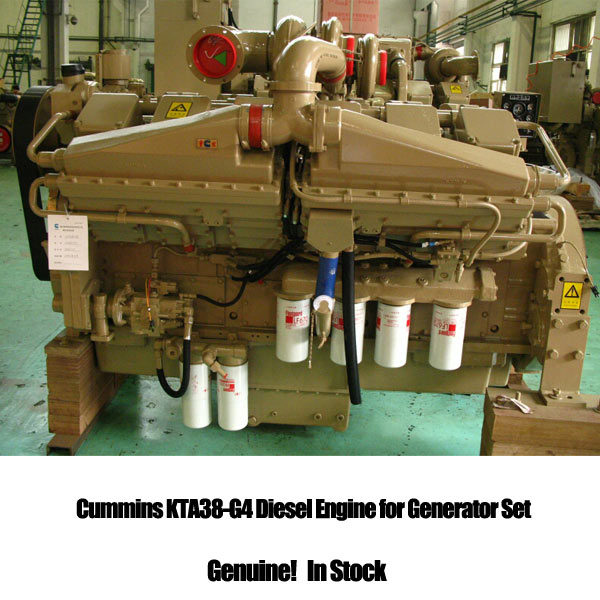

Cummins KTA38-G4 Diesel Engine for Generator Set

The above is general technical specification of Cummins KTA38-G4 diesel engine for generator set. It is also for us to supply the Cummins KTA38-G4 genuine engine parts and Cummins diesel generator set of this engine. best-cummins.com also supply Cummins 6CTA8.3-G2 engine for generator set.

Description

Cummins KTA38-G4 Diesel Engine for Generator Set

General data of Cummins KTA38-G4 Diesel Engine for Generator Set
Engine ModelCummins KTA38-G4
Type4 Stroke; 60° Vee; 12-Cylinder Diesel
Displacement38 L
Bore&Stroke159*159 mm
Dry Weight(fan to flywheel engine)4330 KG
Wet Weight(fan to flywheel engine)4536 KG
Center of Gravity from Rear Face of Flywheel Housing980 mm
Center of Gravity Above Crankshaft Centerline279 mm
Technical data of Cummins KTA38-G4 Diesel Engine for Generator Set
AspirationTurbocharged Aftercooled
Fuel SystemPT Pump Direct Injection
Coolant capacity-engine only124 L
Oil Pan Capacity-Low/High87/114 L
Idle speed725-775 RPM
Frictional loss power/rated output127 KW
Compression ratio13.9:1
Piston Speed9.5 m/sec
Firing Order
Performance Date of Cummins KTA38-G4 Diesel Engine for Generator Set
Rated Output/Speed1007KW/1350HP/1800RPM
Standby Output/Speed1112KW/1490HP/1800RPM
Continuous Output/Speed776KW/1040HP/1800RPM
Brake Mean Effective Pressure(rated output)1779 KPa
Brake Mean Effective Pressure(standby output)1965 KPa
Fuel Consumption/Rated Output245 L/h
Fuel Consumption/Standby output271 L/h



The above is general technical specification of Cummins KTA38-G4 diesel engine for generator set. It is also for us to supply the Cummins KTA38-G4 genuine engine parts and Cummins diesel generator set of this engine. best-cummins.com also supply Cummins 6CTA8.3-G2 engine for generator set.
