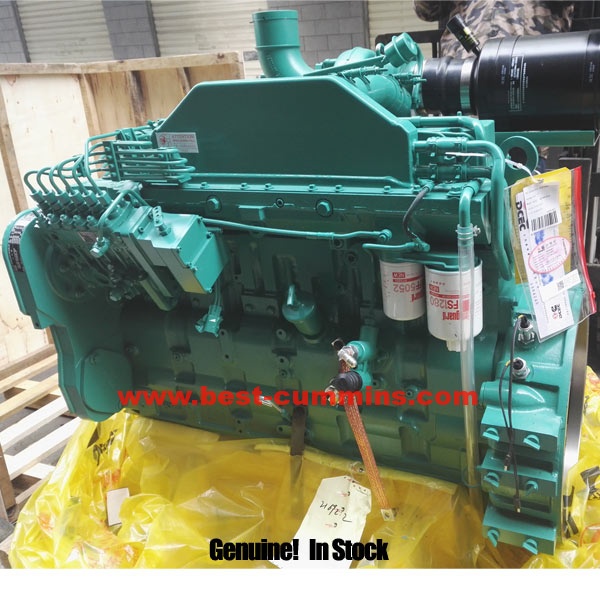

Cummins 6CTA8.3-G2 Diesel Engine for Generator Set

The above is general technical information of Cummins 6CTA8.3-G2 diesel engine for generator set. It is also for us to supply the Cummins 6CTA8.3-G2 genuine engine parts and Cummins diesel generator set of this engine. for more details of this engine, contact us for free.

Description

Cummins 6CTA8.3-G2 Diesel Engine for Generator Set



General data of Cummins 6CTA8.3-G2 Diesel Engine for Generator Set
Engine ModelCummins 6CTA8.3-G2
Type6 cylinder in line
Displacement8.3 L
Bore&Stroke114×135 mm
Dry Weight637 KG
Dimension(L*W*H)867*544*998mm
Center of gravity from front face of block427 mm
Center of gravity above crankshaft centerline163 mm
Technical data of Cummins 6CTA8.3-G2 Diesel Engine for Generator Set
AspirationTurbocharged & Aftercooled
Fuel SystemFR91961: BYC PB/GAC                                            FR92995: BYC PB/SEGMA                                 FR91651: BYC PB/FORTRUST
Governor Regulation≤3%
Coolant capacity-engine only12.3 litre
Mimimum Lubricant Capacity(pan+filter)27.6 L
Idle speed700-900 RPM
Frictional loss power/1500rpm17 KW
Frictional loss power/1800rpm22 KW
Compression ratio17.3:1
Piston Speed/1500rpm6.8 m/sec
Piston Speed/1800rpm8.1 m/s
Performance Date of Cummins 6CTA8.3-G2 Diesel Engine for Generator Set
Rated Output/Speed(1500rpm)163KW/218HP
Standby Output/Speed(1500rpm)180KW/241HP
Continuous Output/Speed(1500rpm)133KW/178HP
Rated Output/Speed(1800rpm)170KW/228HP
Standby Output/Speed(1800rpm)187KW/251HP
Continuous Output/Speed(1800rpm)TBD
Fuel Consumption/rated output(1500rpm)212 g/KW.h
Fuel Consumption/standby output(1500rpm)218 g/KW.h
Fuel Consumption/rated output(1800rpm)213 g/KW.h
Fuel Consumption/standby output(1800rpm)216 g/KW.h



Standard Conditions: Data shown above are based on :

  • Engine operating with fuel system, water pump, lubricating oil pump, air cleaner & exhaust silencer, not included are battery charging alternator, fan and optional driven component
  • Engine operating with diesel fuel corresponding to grade No.2DperASTM D975
  • ISO-3046, Part 1, Standard Reference Conditions of:29.53 in.Hg. [100 kPa] barometric pressure (361ft.[110m] altitude), 25 degree Celsius air temperature and a relative humidity of 30%



The above is general technical information of Cummins 6CTA8.3-G2 diesel engine for generator set. It is also for us to supply the Cummins 6CTA8.3-G2 genuine engine parts and Cummins diesel generator set of this engine.
